Sliding pleated insect net
€ 1.00
✔ Tailor-made for a perfect fit
✔ Excellent suitable for wide doorways
✔ Lifetime warranty for aluminum construction
✔ Weather resistant
✔ Install in 20 minutes
Pleated insect screen doors are especially suitable for both small and wide openings, such as terraces and balconies. The sliding construction ensures convenient opening and closing while taking up minimal space when the insect screen is not in use.
The product package includes:
pleated net, side profiles x2, bottom profile, top profile, mounting screws, decorative caps
Production in 10 working days
Installation in 20 minutes
Delivery in 5 working days
24h order cancellation option
1. Measure the width (W) of the door opening at the top (W1) and bottom (W2). Check that both dimensions are equal (W1=W2). If the measurements differ, the smallest should be used. In this case, the deviation must be compensated with a sealing element when the insect net is installed. The dimensions of the finished product will be the same as the dimensions you have measured.How to measure doors for pleated insect nets
2. Measure the door opening height (H).
3. Enter the dimensions W (W1=W2) and H in the product calculator.
Want to be 100% sure about measurements?
Take some pictures of your windows or doors and send them to us using chat or the contact form. Our consultant will help you and recommend how to take measurements correctly.
Insect net in frame installation

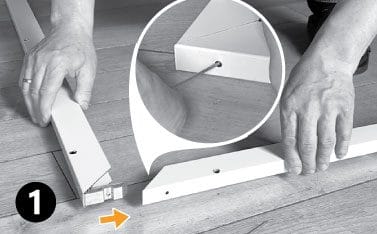

Connect the side profiles of the insect screen to the top profile and secure the joints with a hexagon key.

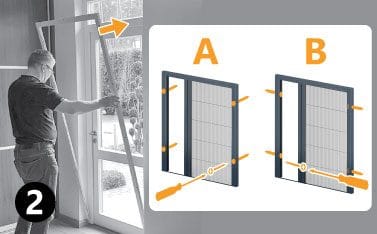

Place the insect screen frame profile on the door frame (A) or inside the door frame (B) and screw it in place with the screws supplied.

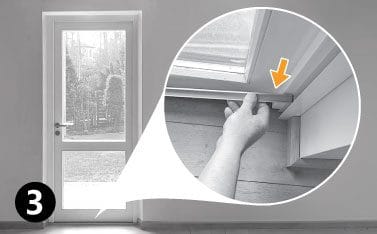

Peel the protective tape from the bottom threshold of the self-adhesive mesh, insert it into the side guides and glue the threshold to the floor.

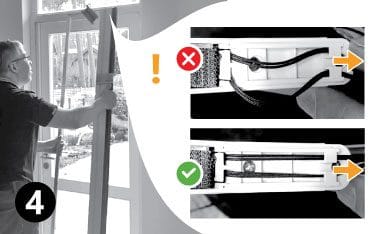

Check the cords at the top and bottom of the pleated mesh roll-out unit for tension and make sure cords is not crossed.

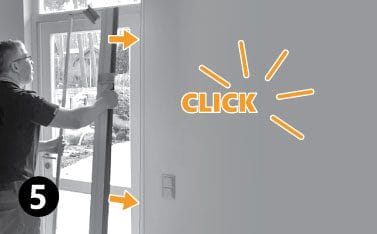

Insert the pleated net pull-out block into the top and bottom guides. Then, on the side from which the net is to be pulled, lock it into the side guides by pressing firmly.

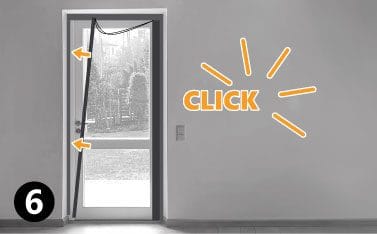

Insert and fix the cord tension profile on the opposite side of the mesh to which it is to be pulled.

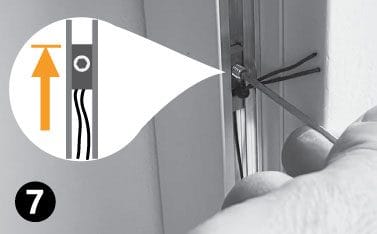

Tighten the cords of the upper and lower guides of the net by tightening them with a hexagonal key. Check that the net remains vertical when opening. If not, repeat this step.

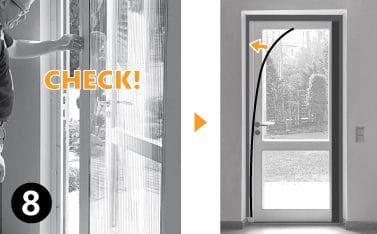

Check that the net opens without catches. Finally, insert the magnetic tape into the tensioning profile.
Best places for installation
Pleated insect netting is suitable for installation on doors of different sizes, or in places where it is important that it does not take up space when opening. Pleated insect net is especially convenient for installation inside the doorway.
Cleaning
To clean the insect screen from dirt, it is best to use a garden hose or similar. Remove the insect screen if possible. Place the insect screen in the bathtub or shower. If you have space outside, place it on the lawn or a hard surface, taking care not to expose it to dirt. If you rinse the insect screen regularly to prevent dirt from getting stuck in the net, you won’t have to remove stuck dirt later. If dirt is still stuck, use a sponge or a soft brush to scrub the insect screen. Use soapy water if necessary. Do not use solvents or abrasive cleaners.
Removal
It is easy to remove the handle strip with pleated mesh. If you need to remove it for cleaning – unlock the string tension profiles on both sides of the mesh and lift the handle out from upper and lower thresholds. You can start cleaning.
